Your Guide to Buying a Mini-Split Air Conditioner

A mini-split air conditioner is a device that can cool several rooms in your house. It is a cheaper alternative to central air conditioning, where you have to install a system of ducts connecting all the rooms together. (Another problem with ducts is that there tends to be air leakage, which affects the unit’s efficiency. With a ductless model, you avoid all of that.)
What can you expect with the installation? There is usually a single outdoor condenser unit, which expels the hot air from your home, and several evaporator indoor units, where you install one unit in each room. You can then cool individual rooms to your preferred temperature--there is typically a remote control for each indoor unit, to control temperature and fan strength. Many mini-split air conditioners serve as heat pumps as well (at least as long as the outdoor temperature doesn’t go below 25 degrees Fahrenheit), so you have a solution for both winter and summer in one device.
We’ve composed this buyer’s guide to help you make the right decision when selecting a mini-split air conditioner. It'll help you:
-
Choose the right type of mini-split air conditioner,
-
See useful tips about that particular type of mini-split air conditioner,
-
Read reviews of different mini-split air conditioners, and what customers are saying,
-
Select the right brand of mini-split air conditioner, and
-
Compare prices and find the best deals.
FAQ
What is a mini split conditioner?
The mini-split system is a heating and cooling system that allows people to regulate temperatures throughout a single room or multiple rooms. The system consists of an outdoor compressor/condenser and an indoor air-handling unit (evaporator). From residential to light commercial and institutional, they're great for a range of applications. They can be the perfect solution to problems such as room additions in which it is not feasible to extend or install distribution ductwork
What is the difference between a mini-split conditioner and a central airconditioner?
The mini split requires no ductwork, which makes them ideal for homes without ducts, while central air conditioners rely on ductwork and vents to circulate cold air or heat. Additionally, the temperature of a mini split indoor unit can be controlled independently by a remote control, whereas central air is controlled by a central thermostat.
What are the advantages of using mini-split conditioner?
The following are the main advantages of a mini-split system:
- Easy Installation : Installation of a mini-split requires only mounting a wall unit, and there are no lengthy ducts required. The indoor unit needs only a three-inch hole drilled in the wall to connect with the outdoor unit. There is no need to rebuild walls or ceilings around the ducts.
- Energy Efficient: As mini-splits deliver air directly from the unit to the focus area, they utilize less electricity and provide higher efficiency. Furthermore, ductless heat pumps use only the energy required to keep your home at the right temperature and humidity.
- Controlled temperature: It is possible to install different indoor units in separate rooms that are connected to one outdoor unit. Since each ductless mini split unit comes with its own remote control, you can adjust the temperature settings for each room separately.
- Minimal Noise: The fan in a mini-split conditioner runs at a low speed, which creates minimal noise thereby providing a comfortable atmosphere. Their noise levels are significantly lower compared with ducted central air conditioning.
What are the things to consider when buying a mini split conditioner?
Consider these factors when choosing a mini-split conditioner:
- Number of Rooms and Size: As a mini-split system is designed with different heating and cooling capacities, the number and total size of the rooms you need to cool and/or heat should always be considered.
- Zones: The term "zone" refers to the entire area that is covered by a single indoor unit. Multi-zone systems are mini-split systems that can cool/heat more than one room at a time, while single-zone systems consist of just one outdoor unit and one indoor unit. Select the mini-split conditioner that is best suited to the zone/s where the unit will be installed.
- BTU (British Thermal Units): The cooling and heating power of an air conditioner is measured in BTUs (British Thermal Units) per hour. As a rule of thumb, the larger your room, the bigger the indoor unit you will need to heat/cool it. A unit's real cooling and heating capacity may be higher or lower than its BTU class. When selecting a unit that meets your BTU needs, keep in mind also that mini-split systems have a higher heating capacity than cooling capability.
Types of Mini Split Air Conditioners
We can distinguish between different mini-split air conditioners by how you mount the indoor unit:
-
Wall Mount--This is the most popular method since the indoor unit can be installed in a way that it is not conspicuous.
-
Ceiling Mount--This model is attached to the ceiling, either suspended or recessed in the center of the ceiling, or adjacent to one of the room’s walls. When in the center, it will deliver hot or cold air evenly throughout the room. But if it is mounted to the side, it will be less noticeable.
What reviewers say
-
Match the unit to your room size: If a mini-split air conditioner is stronger than the room’s needs, it will reach the desired temperature too quickly, and then shut itself off. This short cycling actually wastes energy instead of saving it, and puts a needless strain on the unit. So, you should make sure that the air conditioner’s BTUs match the room size. These are useful specs for reference:
-
Room size from 250 square feet - 450 square feet: 9,000 BTUs
-
Room size from 550 square feet - 800 square feet: 12,000 BTUs (best for two-story home, bungalows, side-split, split entry, rec rooms)
-
Room size from 750 square feet - 1100 square feet: 15,000 BTUs
-
Room size from 850 square feet - 1250 square feet: 18,000 BTUs
-
Note: These figures are when the unit is used for cooling. If it can be used as a heat pump, the appliance will usually prove to be even more efficient.
-
Some things to consider about the installation:
-
Tubing: Take note of the tubing that comes with the unit. Some companies provide 16 feet or 25 feet of copper tubing. This allows you to set up a line set connecting the indoor and outdoor units.
-
The hole between the indoor and outdoor units: You will also have to prepare a hole in the wall or ceiling through which to run the tubing. A 3”-diameter hole will usually suffice. A wall sleeve, usually made from polypropylene, is inserted into the hole, through which you thread the tubing.
-
Coolant: Regarding the coolant, you’ll see that some companies, such as Air-Con, will sell the outdoor unit “pre-charged”, supplied with environmentally-friendly R410A coolant, that doesn’t damage the ozone layer. However, if your unit is not pre-charged, you’ll need a HVAC professional to fill the appliance with coolant.
-
Important Features
-
Noise: Mini-split air conditioning units can have the outdoor unit separated from the indoor unit by over 16 feet. So the outdoor unit can be noisier than the indoor unit, and still not cause you much of a disturbance. The outdoor unit of the Innova 12000 BTU Mini-Split Air Conditioner operates at around 54 decibels, which is the level of normal room conversation, or a light rainfall. The indoor unit is much quieter, as only 19 decibels--that’s the equivalent of people whispering, or a ticking watch! You don’t have to worry about the air conditioner disturbing your sleep.
-
Warranty: A mini-split air conditioner unit is a big investment--for example, the Senville 24,000 BTU unit is over $1400--so you want to make sure that it has an extended warranty. The Senville has a 3-year warranty on the parts, and a 7-year warranty on the compressor (which does most of the cooling work).
-
Specifications on air conditioners: You’ll see a few acronyms that will help you know about the efficiency of the air conditioner that you select.
-
AHRI certified: You’ll see that air conditioners advertise to be “AHRI certified”. “AHRI” stands for “Air Conditioning, Heating, and Refrigeration Institute”. They compare the performance of air conditioning and heating products, to make sure that they comply with efficiency standards.
-
SEER: The SEER ( = Seasonal Energy Efficiency Ratio) rating tells you how well your air conditioner cools. It is a ratio of the amount of cooling that the appliance performs per unit of energy that it uses. It is measured at a standard of 82 degrees Fahrenheit, and the minimum SEER rating is 13. The Cooper and Hunter 2-Zone air conditioner has a SEER rating of 21.3.
-
Top-Rated Brands

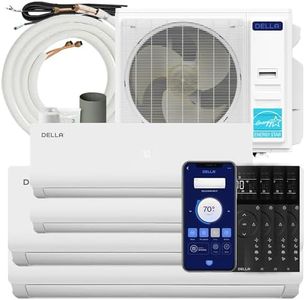

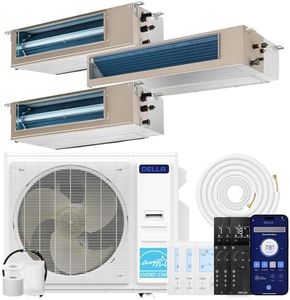

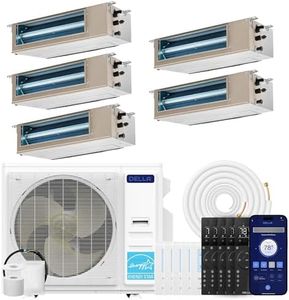

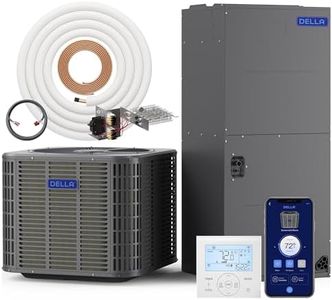

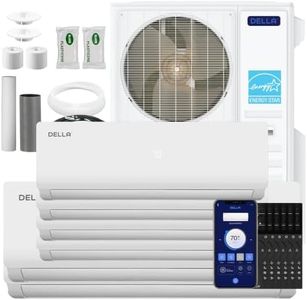

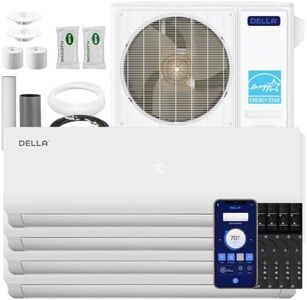

Della, founded in 2015, is a manufacturer of refrigerators, washers and dryers, kitchen appliances, and home comfort products such as dehumidifiers, heaters and conditioners, and air purifiers.
Innova is a company that specializes in ductless mini-split air conditioners. They are based in Alhambra, California. They pride themselves on making units that are quiet, energy-efficient, and compact. Their air conditioning units function both as heaters and coolers.

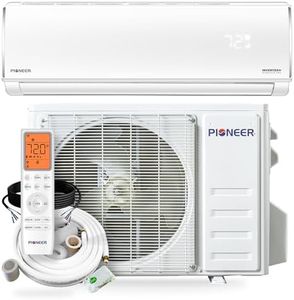

Pioneer, located in Doral, Florida, is a manufacturer of ductless mini-split heat pumps and air conditioners, in a variety of geometries: wall-mounted, ceiling cassette, floor-ceiling mounted, and floor mounted. Their appliances also provide dehumidification and ventilation.
Senville is a maker of mini-split, multi-zone, and portable air conditioners. They also make heat pumps and water heaters. Their headquarters is located in Montreal, Quebec.

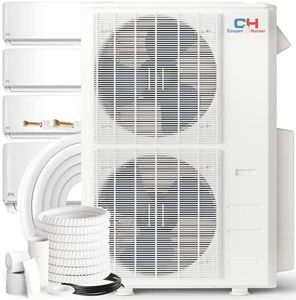

Cooper and Hunter have been makers of air conditioning and ventilation appliances since 1998. They are partners presently with the Chinese Company Zhuhai Vino Environmental Technology Equipment Company. They make single-zone mini-split air conditioners, portable air conditioners, dehumidifiers, and air conditioners for commercial use.
