10 Best Shelf Pin Drilling Jig 2025 in the United States

How do we rank products for you?

Our technology thoroughly searches through the online shopping world, reviewing hundreds of sites. We then process and analyze this information, updating in real-time to bring you the latest top-rated products. This way, you always get the best and most current options available.

headphones-stars

Our Top Picks

#1

Winner

MAX Cabinet Hardware Jig - Install Long Pulls and Shelf Pin Holes - Made In USA - Hand Calibrated by True Position Tools

Rating
9.8
Chosen by1,431
Hole Spacing
Guides and Stops
Ease of Use

Most important from
2547 reviews

Hole Spacing
Spacing pins included ensure perfect screw hole alignment with hardware.
Guides and Stops
The main stop requires some adjustments to ensure precision.
Ease of Use
Functionally, it couldn't be easier to use once set up.

The MAX Cabinet Hardware Jig by True Position Tools is crafted from high-quality anodized aluminum, ensuring durability and precision. It excels in versatility, accurately installing cabinet knobs and pulls of virtually any length, and drilling 32mm shelf pin holes, making it suitable for various cabinet types including shaker cabinets. The jig includes components like long pull and shelf pin extensions, a 5mm drill bit, depth stop, and a hard carrying case, providing everything needed for installation right out of the box.

Its design facilitates fast and easy use, requiring no clamps or marking, which can significantly reduce the stress of hardware installation. Additionally, the jig is fully adjustable and reversible, ensuring repeatability and consistency in installations. This product is compatible with hand-powered drills, adding to its ease of use. However, it is worth noting that the jig is hand-powered, which might not be as convenient for those who prefer electric drills.

Furthermore, the jig's premium materials and precision machining mean it comes at a higher price point, which might be a consideration for budget-conscious users. Nonetheless, its quality and accuracy can help avoid costly mistakes, potentially saving money in the long run. The jig also includes a lifetime bushing warranty and a 60-day free replacement guarantee, attesting to its reliability and the manufacturer’s confidence in its durability. Ideal for both professionals and DIY enthusiasts, the MAX Cabinet Hardware Jig stands out for its quality, ease of use, and versatility.

Rating
9.8
Chosen by1,431
Hole Spacing
Guides and Stops
Ease of Use

Most important from
2547 reviews

Hole Spacing
Spacing pins included ensure perfect screw hole alignment with hardware.
Guides and Stops
The main stop requires some adjustments to ensure precision.
Ease of Use
Functionally, it couldn't be easier to use once set up.
#2

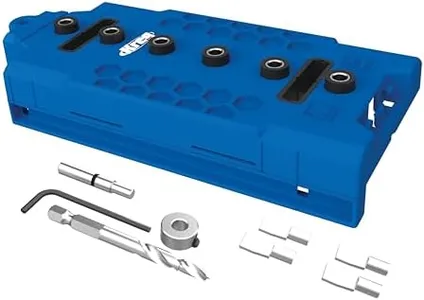

Kreg KMA3225 Shelf-Pin Jig 1/4" (6 mm) - Shelf Pin Drilling Jig - Create Perfect Holes for Wobble-Free Shelves - Drill Guide for Straight Holes

Rating
9.6
Ease of Use

Most important from
964 reviews

Ease of Use
The Kreg KMA3225 Shelf-Pin Jig worked very well to align holes for shelf pins for drilling. Very good tool, easy to use and quality made.

The Kreg KMA3225 Shelf-Pin Jig is designed to help you create precise holes for shelving with ease. One of its standout features is the ability to drill six straight holes at 1 1/4 inch increments, which significantly enhances the stability of your shelves. The hardened-steel drill guides included in the kit are robust, ensuring clean and accurate holes every time, making it a great choice for both novice and experienced DIY enthusiasts. The jig works with a 32 mm system, allowing for proper placement of shelf pin holes, which is especially useful for those looking to install hinges or drawer slides.

A major plus is the versatility of the jig; you can connect it to another shelf-pin jig for larger projects. The package also includes essential components like a 1/4-inch drill bit, a stop collar, and a sample pack of shelf pins, providing a complete solution right out of the box.

On the downside, while the jig is relatively easy to use, beginners may need to spend some time familiarizing themselves with the setup to achieve the best results. Additionally, it is designed specifically for 1/4 inch pins, which might limit its compatibility with other pin sizes. Its compact design, while convenient for storage, may not be suitable for larger projects without connecting to an additional jig.

Rating
9.6
Ease of Use

Most important from
964 reviews

Ease of Use
The Kreg KMA3225 Shelf-Pin Jig worked very well to align holes for shelf pins for drilling. Very good tool, easy to use and quality made.
#3

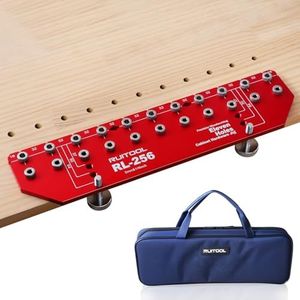

RUITOOL Shelf Pin Jig 11 Holes, Self-contained Clamping Function All Metal Shelf Pin Drilling Jig with 1/4" and 5mm Drill Bit, Shelf Hole Jig and Cabinet Hardware Jig Tool Drill Guide with Storage Bag

Rating
9.3
Ease of Use
Compatibility with Drill Bits

Most important from
137 reviews

Ease of Use
Easy to use for DIY projects, making custom shelves a breeze.
Compatibility with Drill Bits
While the jig works well, using your own drill bits may yield better performance.

The RUITOOL Shelf Pin Jig is a versatile tool designed for efficiently drilling shelf pin holes. With the ability to drill 11 holes at once, it speeds up the installation process significantly, which is beneficial for both DIY enthusiasts and professional carpenters. The all-metal construction using premium aluminum alloy ensures durability and long-lasting performance.

The jig comes with a comprehensive drill bit kit, including 1/4-inch and 5mm bits with corresponding bushings, making it easy to switch between sizes and achieve precise drilling. Adjustable hole spacing options (37mm, 50mm, and 64mm) add to its versatility, allowing it to adapt to various shelving designs. The inclusion of a positioning pin and a stop collar aids in maintaining precision and depth control across multiple shelves, reducing errors in larger projects.

However, the product may be slightly heavy at 2.51 pounds, which could be a drawback for extended use. Additionally, its premium construction might make it more expensive compared to other plastic alternatives. Nevertheless, the RUITOOL Shelf Pin Jig is a reliable tool for those looking to undertake furniture customization or home renovation projects with precision and efficiency.

Rating
9.3
Ease of Use
Compatibility with Drill Bits

Most important from
137 reviews

Ease of Use
Easy to use for DIY projects, making custom shelves a breeze.
Compatibility with Drill Bits
While the jig works well, using your own drill bits may yield better performance.

Buying Guide for the Best Shelf Pin Drilling Jig

When it comes to picking a shelf pin drilling jig, it's important to understand that this tool is essential for creating evenly spaced holes for shelf pins in cabinetry and furniture. A good jig will ensure precision and consistency, making your DIY or professional projects look clean and professional. To choose the best shelf pin drilling jig for your needs, you should consider several key specifications that will impact its performance and suitability for your specific tasks.
MaterialThe material of the jig is crucial because it affects durability and precision. Common materials include plastic, aluminum, and steel. Plastic jigs are lightweight and affordable but may wear out faster. Aluminum jigs offer a good balance of durability and weight, making them a popular choice for many users. Steel jigs are the most durable and precise but can be heavier and more expensive. Choose a material based on how frequently you plan to use the jig and the level of precision you require.
Hole SpacingHole spacing refers to the distance between the holes that the jig will help you drill. Standard hole spacing is typically 32mm, which is common in European-style cabinetry. Some jigs offer adjustable hole spacing, allowing for more versatility in your projects. If you primarily work on standard cabinetry, a fixed 32mm spacing jig will suffice. However, if you need flexibility for custom projects, consider a jig with adjustable spacing.
Number of HolesThe number of holes on the jig determines how many shelf pin holes you can drill in one go. Jigs with more holes allow for faster work on larger projects, while those with fewer holes may be more manageable for smaller tasks. If you frequently work on large cabinets or bookshelves, a jig with more holes will save you time. For occasional or smaller projects, a jig with fewer holes may be easier to handle and store.
Guides and StopsGuides and stops help ensure that your holes are drilled accurately and consistently. Some jigs come with built-in guides and stops, while others may require additional accessories. Built-in guides and stops are convenient and reduce the risk of errors, making them ideal for beginners or those who prioritize precision. If you are experienced and confident in your drilling skills, a simpler jig without these features may suffice.
Ease of UseEase of use is an important factor, especially if you are new to using a shelf pin drilling jig. Look for features such as clear markings, ergonomic design, and simple setup. A user-friendly jig will make your work more efficient and enjoyable. If you are a beginner, prioritize jigs that are known for their ease of use. Experienced users may prefer more advanced jigs with additional features, even if they require a bit more setup.
Compatibility with Drill BitsEnsure that the jig you choose is compatible with the drill bits you have or plan to use. Some jigs come with their own drill bits, while others require you to use your own. Compatibility is important to ensure smooth operation and accurate hole drilling. If you already have a set of drill bits, check the jig's specifications to ensure they will work together. If not, consider a jig that includes the necessary bits.
